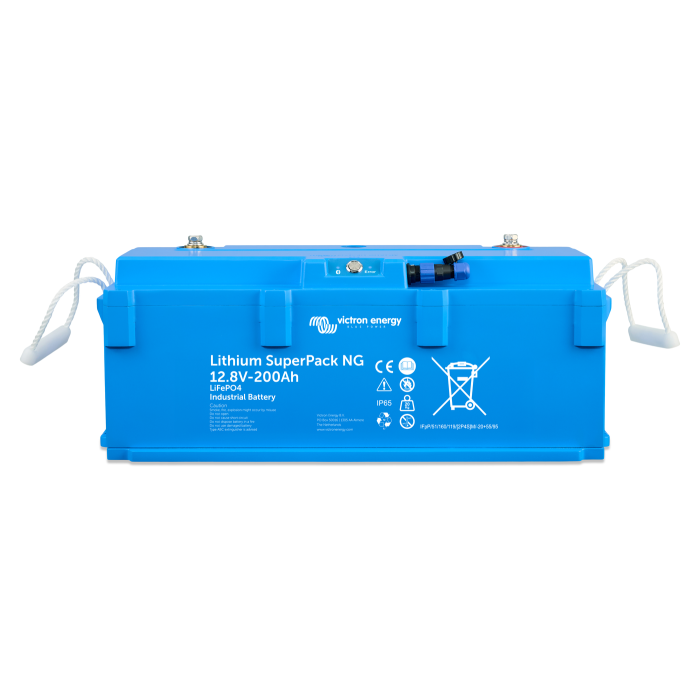

The Lithium SuperPack NG is a smart, drop-in replacement for lead-acid batteries, ideal for retrofits or new builds. It features monitoring and configuration via the VictronConnect app, a built-in Battery Management System, integrated heating for subzero charging and an on/off switch for safe off-season storage. No external BMS or additional components are required.

Highlights:

• Drop-in fit: under 190 mm tall, M8 terminals; fits existing battery spaces under seats or in tight compartments;
• Built-in BMS and battery monitor with SafetyShield+ protection: constant current, voltage, cell balance and temperature checks, alerts via External Feedback Signals (EFS);
• Self-heating: the integrated heat mat allows charging down to -30 °C (charger mode or auto mode);
• Double discharge capacity: continuous discharge up to 2C (400 A for this model), so you size for energy needs, not for power spikes;
• Bi-directional e-switch: protects against overcharging and excessive discharging by controlling both current paths independently, without total shutdowns;
• Bluetooth and VictronConnect: state of charge, battery temperature, 30-day history, alarms, discharge floor, heating modes and firmware updates;
• Two status LEDs and on/off push button: up to six months of storage without recharging;
• IP65 water, dust and chemical protection; integrated 3/4" threaded safety vent for enclosed installations; automatic recovery after short-circuit or over-current events;
• Unlimited parallel connection (series connection is not allowed);
• 15-year design life; 2500 cycles @ 80% DoD, 3000 cycles @ 70% DoD, 5000 cycles @ 50% DoD; round trip efficiency 93%.

Documents & Downloads:

Datasheet

Manual

Enclosure dimensions

Certificate Automotive ECE R10-7

Declaration of conformity

Material safety data sheet

ISO9001 certificate
