OKW - Robust aluminium enclosure with good access, horizontal guides, and recessed area for protection.
Lei 400.00
Lei 336.13
In stock
SKU
B3407033
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Robust aluminium enclosure with good access, horizontal guides, and recessed area for protection.

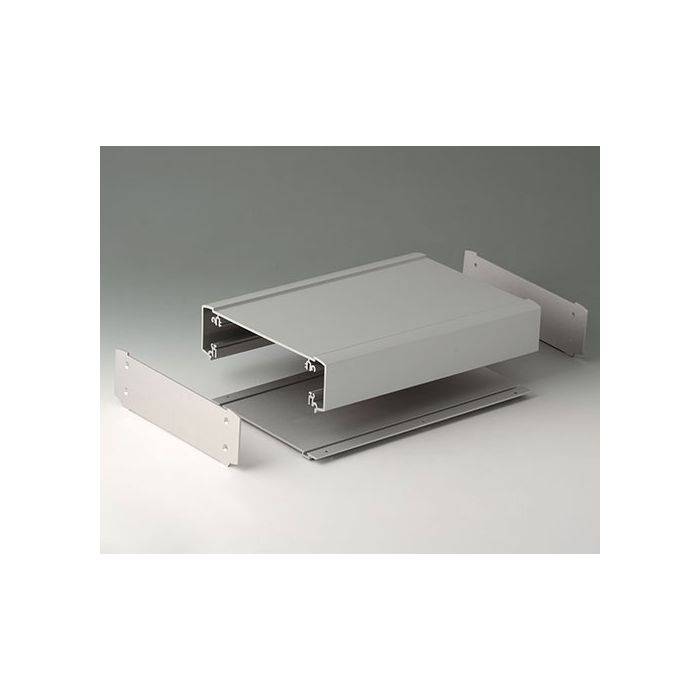

Robust enclosure with two-part aluminium profile (glass bead-blasted and anodised) and aluminium end plates. Good access inside for installation and assembly work. Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements. Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | Aluminium AlMgSi 0.5 |
| Colour | matt anodised |
| Standards | RoHS compliant, REACH compliant |
| Width | 170 mm |
| Length | 244 mm |
| Height | 50 mm |
| PCB Length, Top | 240 mm |
| PCB Width, Top | 117 mm |
