OKW - 4-part aluminium enclosure for various applications
Lei 255.00
Lei 214.29
In stock
SKU
EO206059
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
4-part aluminium enclosure for various applications

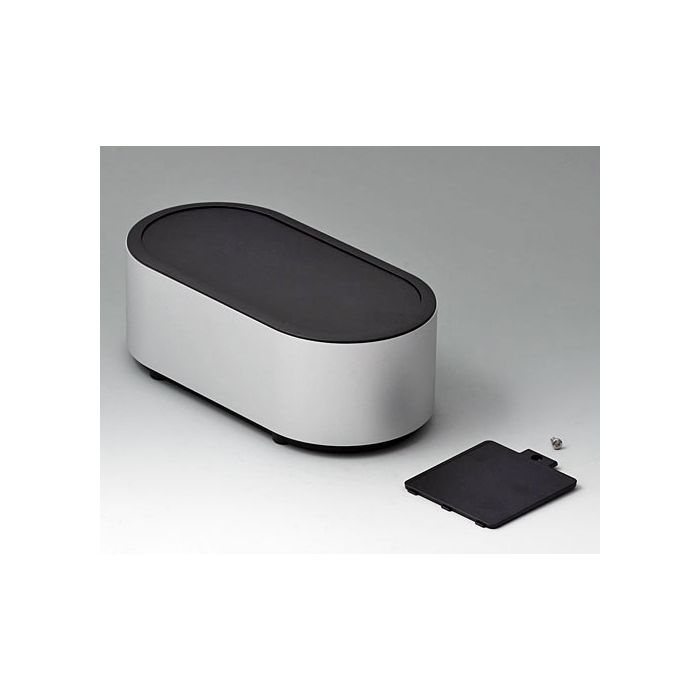

4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | Aluminium AlMgSi 0.5, ASA+PC (UL 94 V-0) |
| Colour | Frame matt anodised, Plastic parts black RAL 9005 |
| Standards | RoHS compliant, REACH compliant |
| Width | 100 mm |
| Length | 200 mm |
| Height | 70 mm |
| Protection class | IP 40 |
| PCB Length, Base | 189 mm |
| PCB Width, Base | 84 mm |
| PCB Length, Top | 188.9 mm |
| PCB Width, Top | 84 mm |
| Keypad Length | 182.1 mm |
| Keypad Width | 82.1 mm |
