WIELAND - CONNECTING MODULE FCS 16 5 SI SA M32, Price per piece
Lei 461.00
Lei 387.39
In stock
SKU
7545600531
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

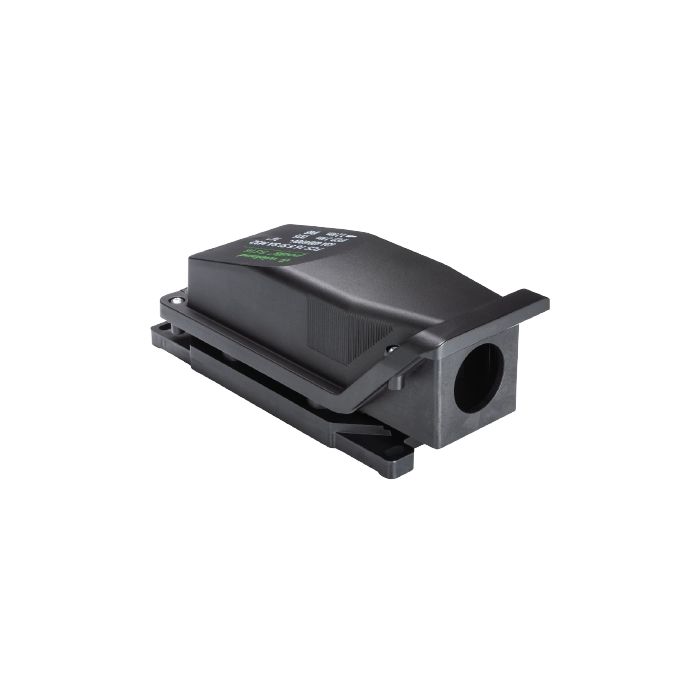

Connection module PODIS CON 5G16 for fixed wireing, as feed-in or tap- off; for M32 cable gland (available as accessory); 5-pole; nominal ratings acc. VDE 63 A; 690 V; 6kV/3; nominal ratings acc. UL 32 A; 600 V degree of protection IP65; piercing contacts; Torx 15; screw clamps max. 16 mm² (AWG 6) single/fine-stranded; max. cable diameter 25 mm; housing black; mounting position any; UL2875 pending; Outline dimensions L x W x H 250 x 84 x 74 mm
Documents & Downloads:
Write Your Own Review
Manufacturer | WIELAND |
---|---|
Manufacturer code | 75.456.0053.1 |
Order Unit | 2 piece(s) |
Length packed | 256 mm |
Width packed | 160 mm |
Height packed | 84 mm |
Gross weight packed | 1475 g |
Net weight single part | 625 g |
Volume packed | 3441 ccm |
Colour | Black |
Degree of protection | IP65 |
Cable diameter max. | 25 mm |
Operating temperature | -25 °C min / 55 °C max |
Connection type | insulation piercing connection / screw connection |
Number of poles | 5 |
Mounting Method | surface mounting |
Rated current | 63 A |
Rated Voltage (V) | 690 V |
Length | 248 mm |
ROHS conformity status | compliant/exempted |
REACH-SVHC conformity status | Duty-To-Declare |
Country of origin | DE |
