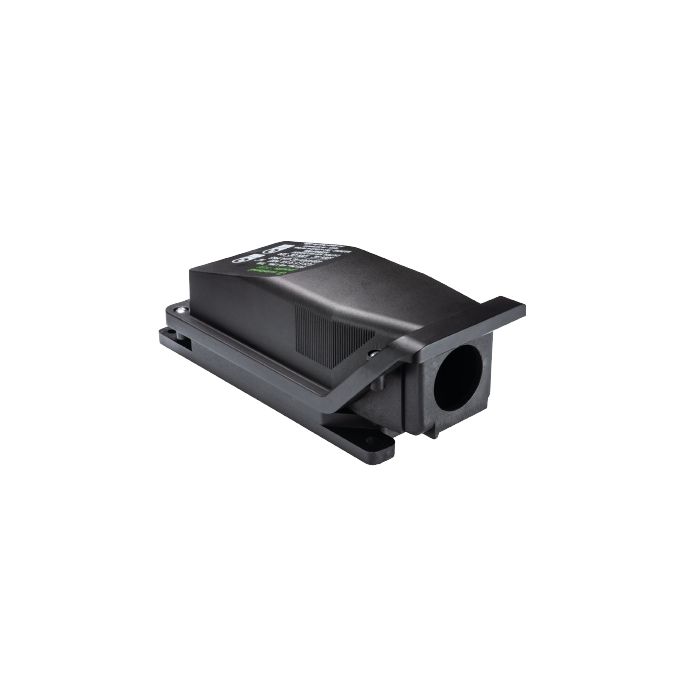

WIELAND - CONNECTING MODULE FCS 6 5 SI SA M32, Price per piece
Lei 393.00
Lei 324.79
In stock
SKU
7525000531
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Connection module PODIS CON 5G6 for fixed wireing; for M32 cable gland; 5-pole; nominal ratings acc. VDE 41 A; 690 V; 6kV/3; nominal ratings acc. UL 32 A; 600 V degree of protection IP65; piercing contacts; Torx 15; screw clamps max. 16 mm² (AWG 6) single/fine-stranded; max. cable diameter 25 mm; housing black; mounting position any; UL2875 pending; Outline dimensions L x W x H 250 x 84 x 74 mm
Documents & Downloads:
Write Your Own Review
| Manufacturer | WIELAND |
|---|---|
| Manufacturer code | 75.250.0053.1 |
| Order Unit | 2 piece(s) |
| Description | connecting module FCS 6 5 SI SA M32 |
| Length packed | 256 mm |
| Width packed | 160 mm |
| Height packed | 84 mm |
| Gross weight packed | 1385 g |
| Net weight single part | 680 g |
| Volume packed | 3441 ccm |
| Colour | Black |
| Degree of protection | IP65 |
| Cable diameter max. | 10 mm min / 25 mm max |
| Operating temperature | -25 °C min / 55 °C max |
| Connection type | insulation piercing connection / screw connection |
| Number of poles | 5 |
| Mounting Method | surface mounting |
| Rated current | 41 A |
| Rated Voltage (V) | 690 V |
| Length | 248 mm |
| ROHS conformity status | Compliant |
| REACH-SVHC conformity status | Duty-To-Declare |
| Country of origin | DE |
