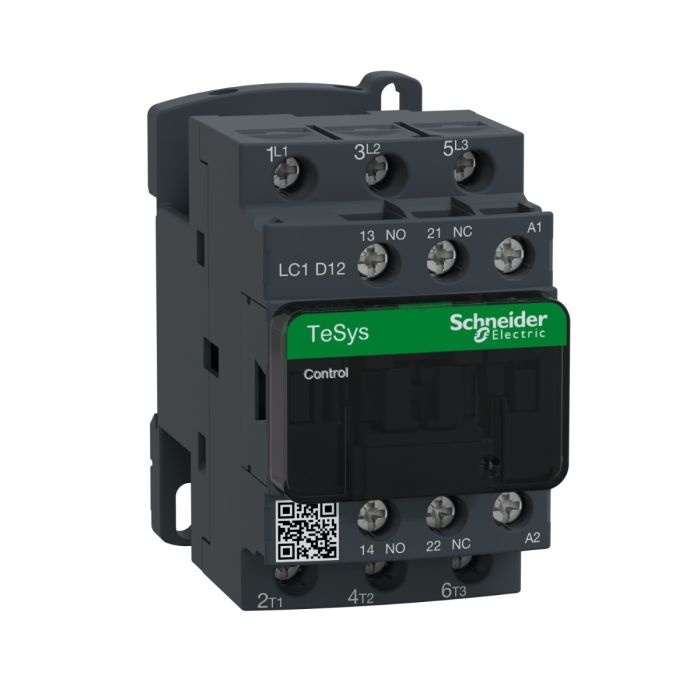

(Produs cu ambalajul deteriorat) - SCHNEIDER Electric - TeSys Deca contactor, 3P 12A AC-3 440V - aux 1NO+1NC - 24V 50Hz

AC-1
AC-3
AC-4
AC-3e

25 A 60 °C) at <= 440 V AC-1 for power circuit
12 A 60 °C) at <= 440 V AC-3 for power circuit
12 A 60 °C) at <= 440 V AC-3e for power circuit

3 kW at 220...230 V c.a. 50 Hz (AC-3)
5,5 kW at 380...400 V c.a. 50 Hz (AC-3)
5,5 kW at 415...440 V c.a. 50 Hz (AC-3)
7,5 kW at 500 V c.a. 50 Hz (AC-3)
7,5 kW at 660...690 V c.a. 50 Hz (AC-3)
3,7 kW at 400 V c.a. 50 Hz (AC-4)
3 kW at 220...230 V c.a. 50 Hz (AC-3e)
5,5 kW at 380...400 V c.a. 50 Hz (AC-3e)
5,5 kW at 415...440 V c.a. 50 Hz (AC-3e)
7,5 kW at 500 V c.a. 50 Hz (AC-3e)
7,5 kW at 660...690 V c.a. 50 Hz (AC-3e)

Power circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Power circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Power circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Power circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Power circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end
Power circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end

12...22 ms closing

4...19 ms opening

B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1

EN/IEC 60947-1
IEC 60947-4-1
SR EN 60947-5-1
SR EN 60947-5-1
UL 60947-4-1
CSA C22.2 No 60947-4-1
IEC 60335-1

UL
CSA
CCC
EAC
KC
LROS (Lloyds register of shipping)
DNV-GL
RINA
BV
UKCA

250 A at 440 V for power circuit conforming to IEC 60947
140 A AC for signalling circuit conforming to IEC 60947-5-1
250 A DC for signalling circuit conforming to IEC 60947-5-1

10 A gG for signalling circuit conforming to IEC 60947-5-1

40 A gG la <= 690 V coordination type 1 for power circuit

25 A gG la <= 690 V coordination type 1 for power circuit

IP20 front face conforming to SR EN 60529

3600 cyc/h 60 °C

0.3 ... 0.6 Uc -40… 70 ° C elimination c.a. 50 Hz

0.8 ... 1.1 Uc -40… 60 ° C operational c.a. 50 Hz

1 ... 1.1 Uc 60… 70 ° C operational c.a. 50 Hz

70 VA 50 Hz 0,75 20 °C)

7 VA 50 Hz cos phi 0.3 (at 20 °C)

Type mechanically linked 1 NO + 1 NC conforming to SR EN 60947-5-1

type mirror contact 1 NC conforming to IEC 60947-4-1

1.5 ms on de-energisation between NC and NO contact
1.5 ms on energisation between NC and NO contact
