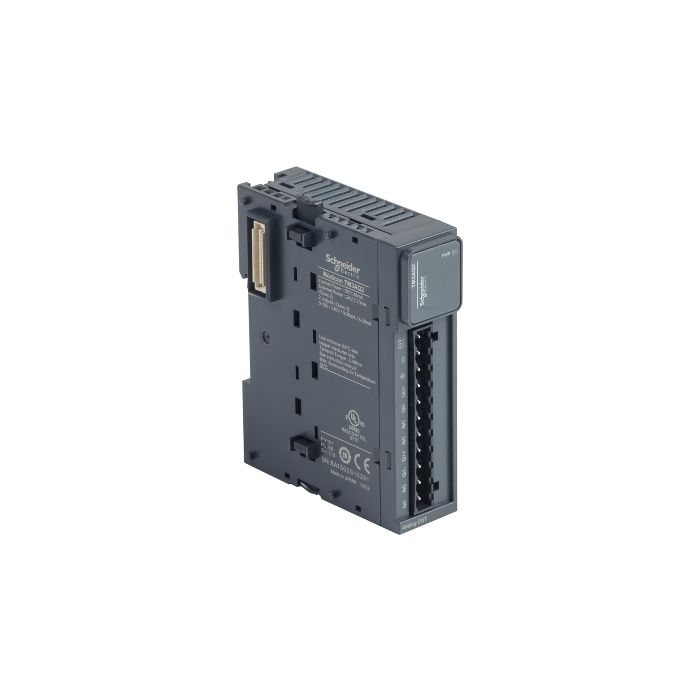

iesire analogica modul Range compatibility Modicon M221 Modicon M241 Modicon M251
[Us] tensiune de alimentare nominală
24 V DC Supply voltage limits 20.4...28.8 V Type of cable Twisted shielded pairs cable 30 m for output circuit Current consumption 40 mA at 5 V DC (full load) via bus connector 35 mA at 5 V DC (no load) via bus connector 30 mA
Marcaj
CE Surge withstand 1 kV for power supply with common mode protection conforming to EN/IEC 61000-4- 5 0.5 kV for power supply with differential mode protection conforming to EN/IEC 61000-4-5 1 kV for output with common mode prot
Înălțime mm
90 mm
Adâncime mm
70 mm The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein. This documentation is not intended as a substitute for and is not to be u
Lățime in mm
23.6 mm Product greutate 0.115 kg
Grad de protecție IP
IP20 pollution degree 2 operating altitude 0...2000 m storage altitude 0...3000 m vibration resistance 3.5 mm at 5...8.4 Hz with DIN rail mounting support 3 gn at 8.4...150 Hz with DIN rail mounting support shock resistance 15 gn during 11 ms Offer Sustainability Sustainable offer status Green Premium product RoHS (date code: YYWW) Compliant - since 1415 - Schneider Electric declaration of conformity REACh Reference not containing SVHC above the threshold Product environmental profile Available Product end of life instructions Available Dimensions
Număr ieșire analogică
2 Analogue output type 4...20 mA current 0...20 mA current 0...10 V voltage - 10...10 V voltage Complementary Analogue output resolution 11 bits + sign 12 bits LSB value 2.44 mV, analogue input: 0...10 V voltage<
