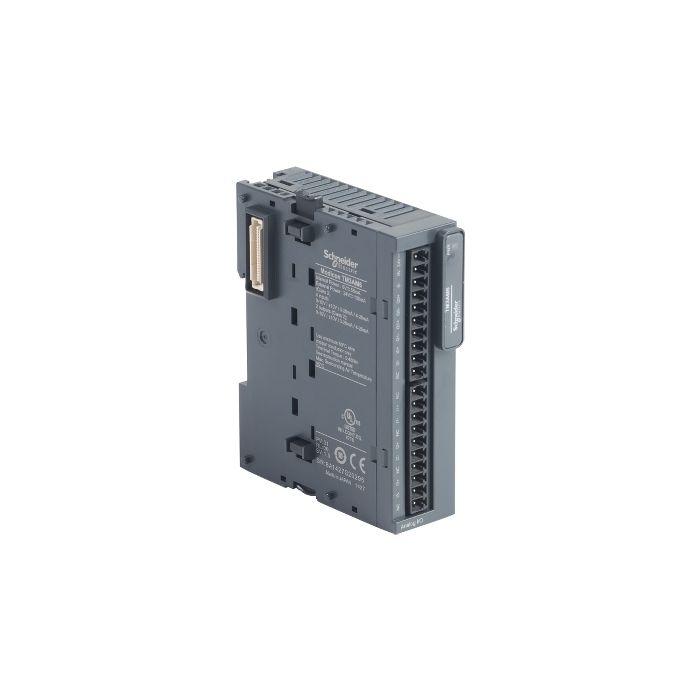

intrare/iesire analog modul Range compatibility Modicon M221 Modicon M241 Modicon M251
[Us] tensiune de alimentare nominală
24 V DC Supply voltage limits 20.4...28.8 V Type of cable <= 30 m twisted shielded pairs cable for input/output circuit Current consumption 45 mA at 5 V DC (no load) via bus connector 55 mA at 5 V DC (full load) via bus connector
Numărul intrării analogice
4 Analogue input type Current, analogue input range: 4...20 mA Current, analogue input range: 0...20 mA Voltage, analogue input range: 0...10 V Voltage, analogue input range: - 10...10 V
Marcaj
CE Surge withstand 1 kV for power supply with common mode protection conforming to EN/IEC 61000-4- 5 0.5 kV for power supply with differential mode protection conforming to EN/IEC 61000-4-5 0.5 kV for I/O with differential mode
Înălțime mm
90 mm
Adâncime mm
70 mm
Lățime in mm
23.6 mm Product greutate 0.11 kg
Grad de protecție IP
IP20 pollution degree 2 operating altitude 0...2000 m storage altitude 0...3000 m vibration resistance 3.5 mm at 5...8.4 Hz with DIN rail mounting support 3 gn at 8.4...150 Hz with DIN rail mounting support shock resistance 15 gn during 11 ms Offer Sustainability Sustainable offer status Green Premium product RoHS (date code: YYWW) Compliant - since 1415 - Schneider Electric declaration of conformity REACh Reference not containing SVHC above the threshold Product environmental profile Available Product end of life instructions Available Dimensions 2 / 4
Număr ieșire analogică
2 Analogue output type 4...20 mA current 0...20 mA current 0...10 V voltage - 10...10 V voltage Complementary Analogue input resolution 12 bits 11 bits + sign Permissible continuous overload 13 V voltage 40
